Bathroom Kitchen Stainless Steel Flexible Faucet Connect Hose
 |
||
 |
 |
 |
 |
 |
 |
Product description:
Model No.: ZXH-T3
DN/DIA: 13/17mm ( 8/12mm, 9/13mm, 10/14mm optional)
Inner tube: EPDM tube (PVC and PEX tube optional)
Wires braided: S.S304 (S.S 201,nylon and Aluminium optional)
Nut and connector: Brass and Nickel plated ( Cu>57,Pb<3 );
Insert: Brass Original Color ( Cu>57,Pb<3 );
Ferrule: S.S 201 ( S.S 304 and Brass Optional)
Washer: EPDM
Length: from 0.3m to 2.0m
With or without blue & red optional
OEM/OBM/ODM SERVICE ARE ACCEPTABLE!!
Technical date:
Working pressure: 10bar
Working temperature: from -5Degree to 90Degree
Passage hole: 6mm
Packing:
Econ: 10 pieces in one polybag with a label on it, then put into the cartons;
Lux 1: one piece or a pair in one polybag with paper card on head( with your Logo), then put into the cartons;
Lux 2: one piece fixed on plastic holder (with your logo on head); one pair fixed with a plastic stick , then put into the cartons;
Others:
MOQ: 1000pcs/model
Price term: FOB, CNF or CIF
Loading port: Xiamen port, China
Payment: 30% paid in advance and the balance 70% paid before loading or against copy of B/L, L/C is acceptable!
Other diamension we have:
F1/2″XF1/2″
F3/8″XF1/2″
M1/2″XF1/2″
M3/8″XF3/8″

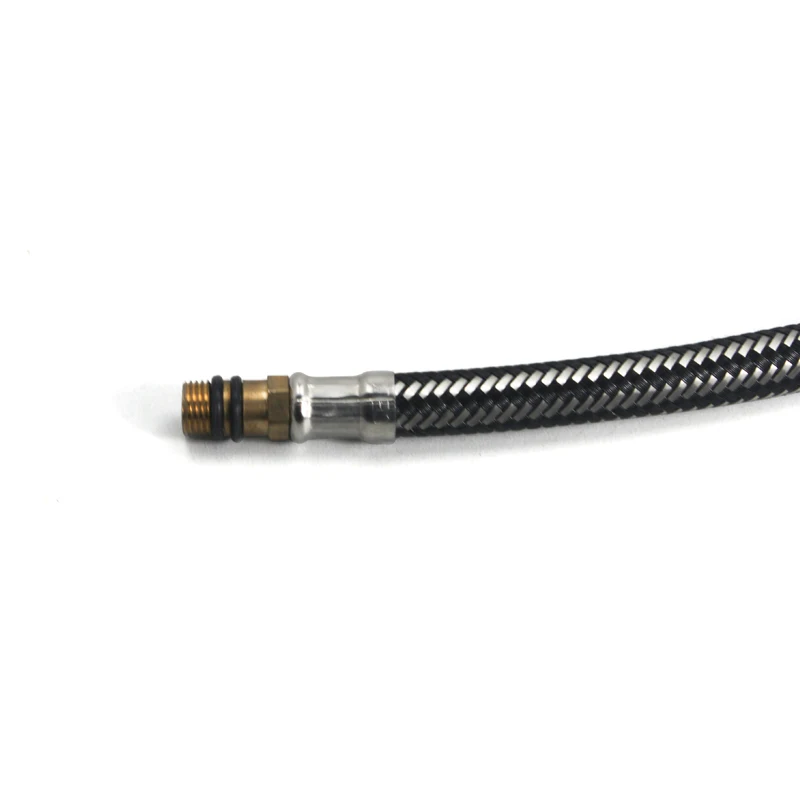

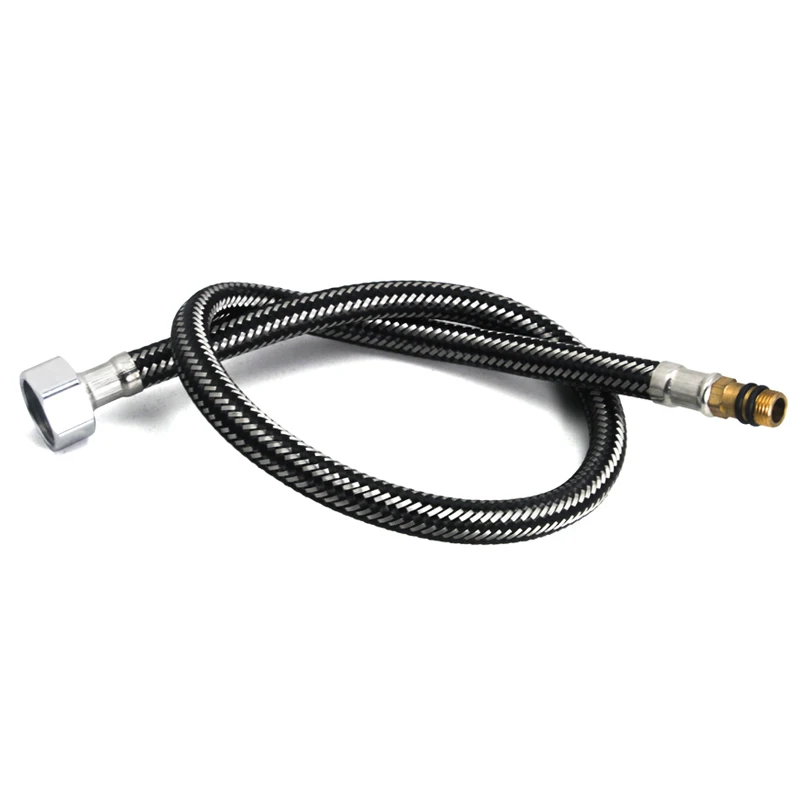

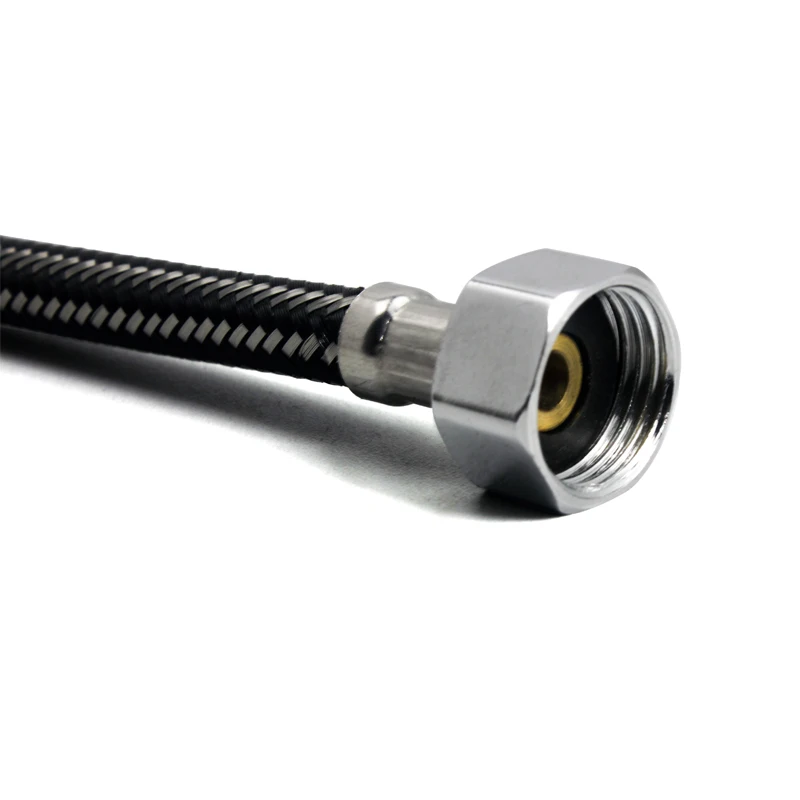

Picture of Hose parts:
|
DN (mm) |
DIA (mm) |
Length (Inch) |
Passage Hole (mm) |
Bending Radius (mm) |
Working Temperature () |
Working Pressure (Bar) |
Flow Rate In 3 Bar (Lt/Min) |
PCS In Carton: 55x35x18CM |
|
9 |
13 |
8″-48″ |
7 |
40 |
-5/+90 |
10 |
48 |
160 |
|
HS Code:: |
84819090 |
Thank you for your attention on short notice. If you have any questions, pls feel free to contact us, do not miss the bus.
Email: sales04 at zx1992.com
Skype:sundae181
Wechat/Whatsapp:86-18750429720
